using ir remote control leds in tamil

-

codings for control leds using tsop1738


#include <IRremote.h>

int RECV_PIN = 4; //

int output1 = 8;

int output2 = 9;

int output3 = 10;

int output4 = 11;

int itsONled[] = {0,0,0,0,0};

#define code1  0xE0E020DF //

#define code2  0xE0E0A05F //

#define code3  0xE0E0609F //

#define code4  0xE0E010EF

#define power  0xE0E040BF

IRrecv irrecv(RECV_PIN);

decode_results results;

void setup()

{

 Serial.begin(9600);   //

 irrecv.enableIRIn();  //

 pinMode(output1, OUTPUT);

 pinMode(output2, OUTPUT);

 pinMode(output3, OUTPUT);

 pinMode(output4, OUTPUT);



}

void loop() {

 if (irrecv.decode(&results)) {

   unsigned int value = results.value;

   switch(value) {

      case code1:

        if(itsONled[1] == 1) {

           digitalWrite(output1, LOW);

           itsONled[1] = 0;

        } else {

            digitalWrite(output1, HIGH);

            itsONled[1] = 1;

        }

         break;

      case code2:

        if(itsONled[2] == 1) {

           digitalWrite(output2, LOW);

           itsONled[2] = 0;

        } else {

            digitalWrite(output2, HIGH);

            itsONled[2] = 1;

        }

         break;

      case code3:

        if(itsONled[3] == 1) {

           digitalWrite(output3, LOW);

           itsONled[3] = 0;

        } else {

            digitalWrite(output3, HIGH);

            itsONled[3] = 1;

        }

         break;

     case code4:

        if(itsONled[4] == 1) {

           digitalWrite(output4, LOW);

           itsONled[4] = 0;

        } else {

            digitalWrite(output4, HIGH);

            itsONled[4] = 1;

        }

         break;

     case power:

        if(itsONled[0] == 1) {

           digitalWrite(output1, LOW);

           digitalWrite(output2, LOW);

           digitalWrite(output3, LOW);

           digitalWrite(output4, LOW);

           itsONled[0] = 0;

        } else {

          digitalWrite(output1, HIGH);

          digitalWrite(output2, HIGH);

          digitalWrite(output3, HIGH);

          digitalWrite(output4, HIGH);

          itsONled[0] = 1;

        }

         break;

   }

   Serial.println(value);

   irrecv.resume();

 }

}

***************-------------------*******************----------------------*******************

copy the code and must change the HEX code....

put that your remote HEX code..

and the upload that...

Comments

Post a Comment

Popular posts from this blog

CHATBOT programming tutorial in tamil

-
PYTHON CODING import webbrowser import smtplib import random from datetime import datetime  import os import sys #from weather import Weather import urllib import requests #import urllib2 import time from bs4 import BeautifulSoup import speech_recognition as sr from playsound import playsound import wikipedia import urllib3 import pyttsx3 #from googlesearch import search engine = pyttsx3.init('dummy') voices = engine.getProperty('voices') engine.setProperty('voice', voices[len(voices)-1].id) def speak(audio):     print('Computer: ' + audio)     engine.say(audio)     engine.runAndWait() def greetMe():     now=datetime.now()     currentH = int(now.strftime("%H"))     if currentH >= 0 and currentH < 12:         speak('Good Morning!')     if currentH >= 12 and currentH < 18:         speak('Good Afternoon!')     if currentH >= 18 and currentH !=0:         speak('Good E
Read more

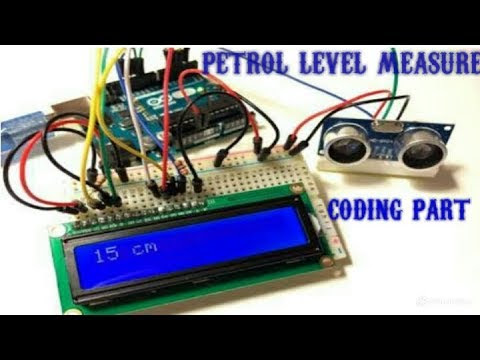

programing part for petrol level measuring in tamil

-
